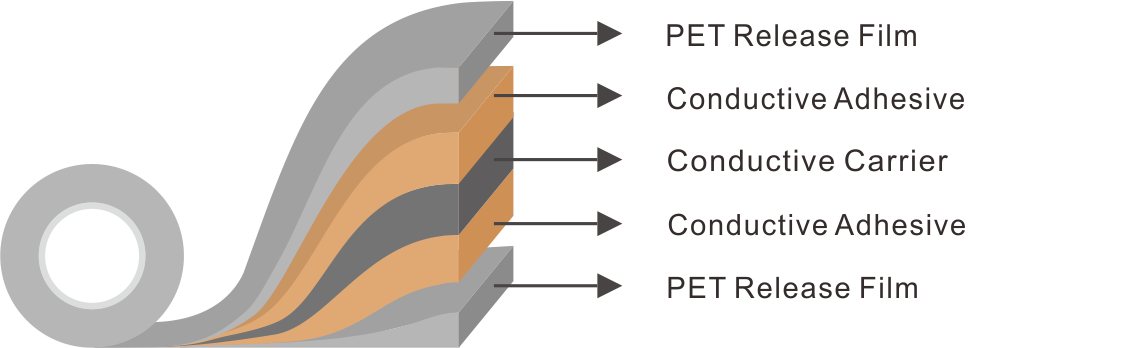

? Single/Double sided tapes using conductive material as carrier and coated with conductive adhesive.
? High adhesion
? Excellent conductivity and EMI shielding performance
? Carrier type customizable according requirement
? EMI/RFI shielding, sealing and bonding
|
Product |
Carrier |
Thickness (μm) |
Adhesion (gf/25mm) |
Resistance(Ω) |
|||
|
Thin Liner Side |
Thick Liner Side |
X |
Y |
Z |
|||
|
DW5315T |
CU Foil |
15 |
1000 |
800 |
0.1 |
0.1 |
0.1 |
|
DW5330T |
CU Foil |
30 |
500 |
1000 |
2 |
2 |
2 |
|
DW5160T |
Conductive Fabric |
55 |
2200 |
2200 |
0.4 |
0.4 |
0.4 |
|
DW51100B |
Conductive Fabric |
100 |
1700 |
1700 |
0.1 |
0.1 |
0.5 |
|
DW5050 |
Non-woven |
50 |
700 |
700 |
0.2 |
0.2 |
0.2 |
|
Remark : customizable thickness |
|||||||
